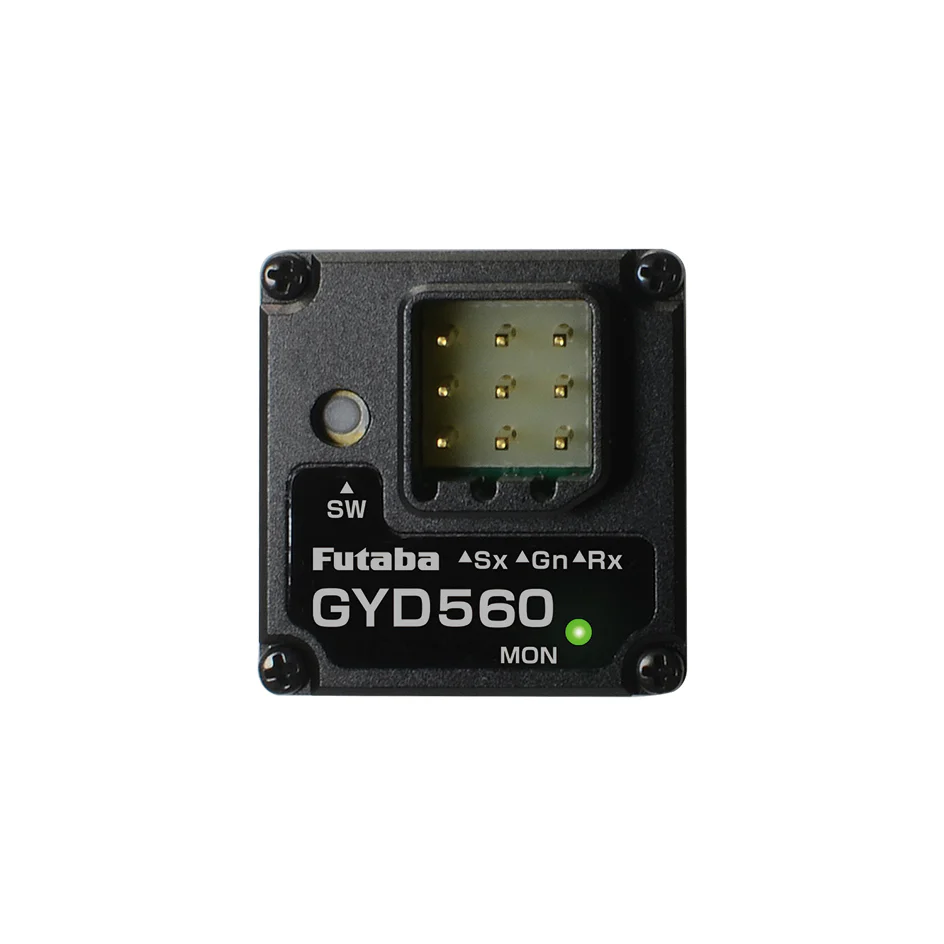

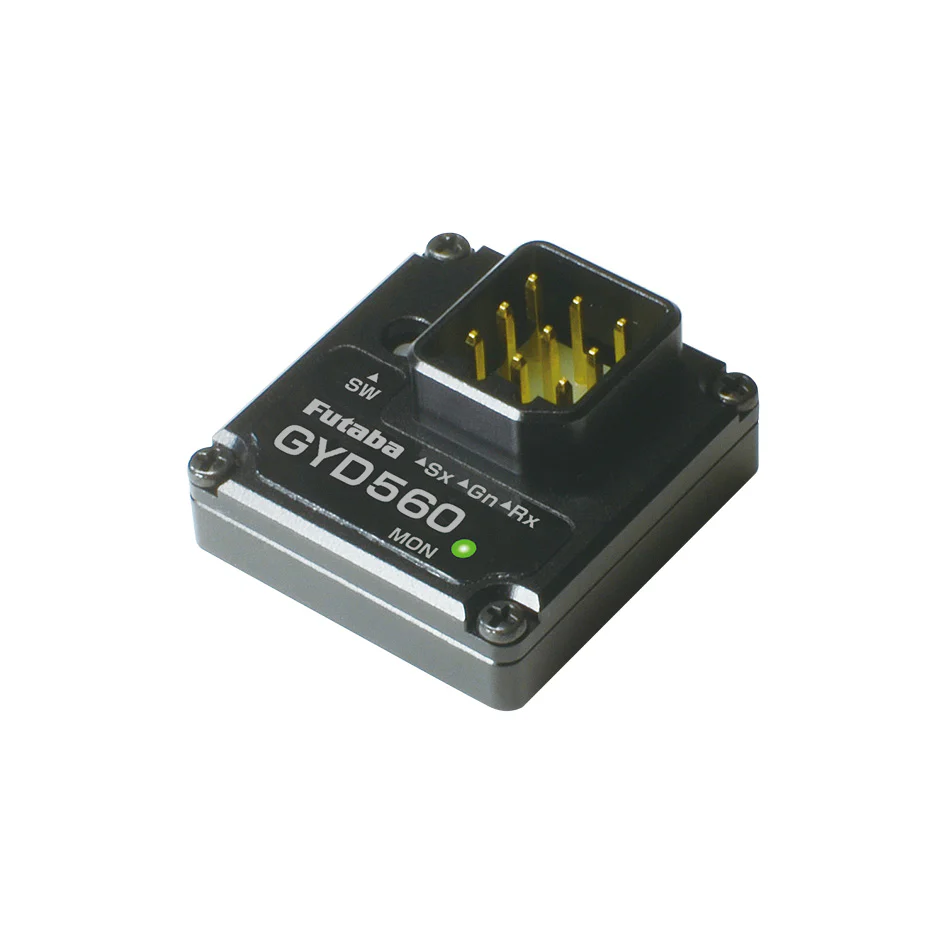

Futaba GYD560 Gyro

Smoother operation with UR mode compatibility
The GYD550, the No.1 drift gyro, has been upgraded with UR mode!

---

Product Features
(Integrated Sensor Gyro)

• Angular Velocity Detection Method: Vibration gyro sensor

• Operating Voltage: DC 3.5 V to 8.4 V

• Current Consumption: 30mA (when servo is not connected)

• Operating Temperature: -10°C to +45°C

• Dimensions: 20.7 x 21.7 x 10.6mm (excluding protrusions)

• Weight: 5.4 g

• Functions: Monitor LED, S.BUS/S.BUS2 compatible

---

Key Functions

• UR Mode Compatibility: Supports UR mode servos with the high-speed response system F-4G.

• Remote Gain Function: Adjust gyro sensitivity directly from the transmitter (requires a transmitter/receiver capable of 3CH or higher with 3CH steering adjustment).

• RC Drift Car-Specific Settings: Minimizes the impact of road surfaces and enhances drift performance with UR mode responsiveness.

• Ultra-Compact and Lightweight: Achieved through high-density mounting technology.

• Aluminum Case: Durable, high-rigidity, and lightweight aluminum case ensures accurate transmission of chassis movements to the internal sensor.

• S.BUS System Compatibility: Can be used with S.BUS receivers for S.BUS connection (also compatible with non-S.BUS systems).

• Digital Servo Exclusive: Designed for Futaba HPS/BLS servos and digital servos only (not compatible with analog servos).

---

Adjustment Features

• Normal / AVCS Mode

• High-Speed Response Mode

• High-Gain Mode

• Tail Slide Speed Adjustment

• Gyro Curve Adjustment

• Left/Right Endpoint Adjustment

• Damper Adjustment

• Stick Priority Mode Adjustment

• Wireless Adjustment Function

Wireless adjustment is only available with the F-4G system on T10PX, T6PV, R404SBS, and R404SBS-E.
Software updates for T10PX, T6PV, R404SBS, and R404SBS-E are required to enable wireless adjustment for GYC480 and GYD560.
