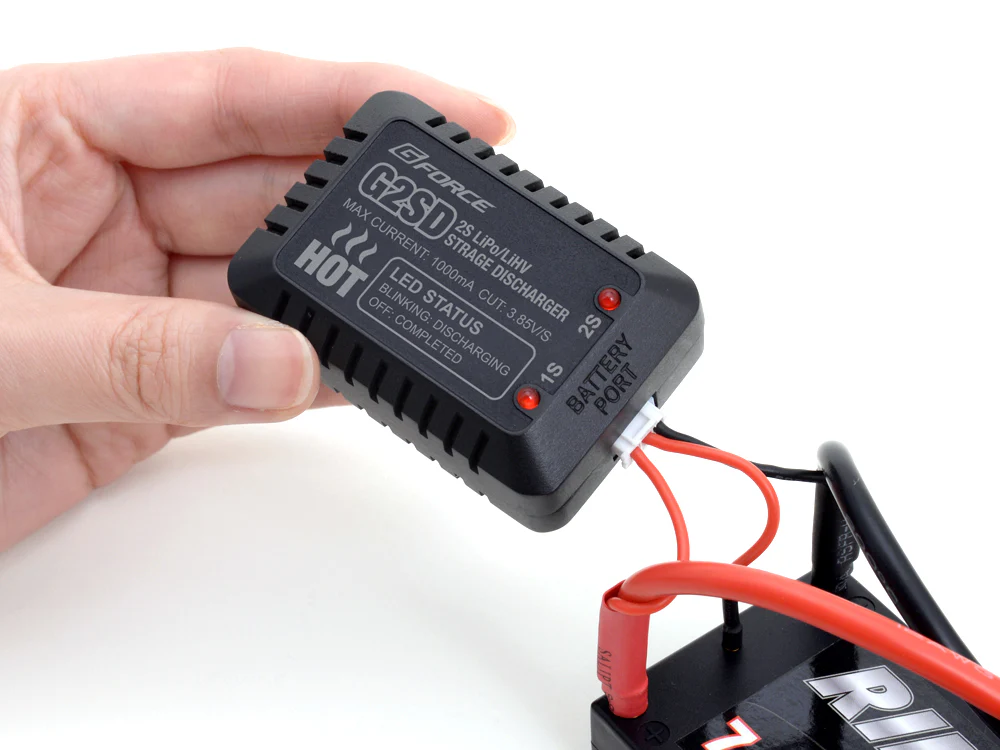

G-Force G0210 G2SD Storage Discharger
Product Features
Just connect the balance terminal and it will automatically discharge up to 3.85V/1S.
After discharging is complete, the circuit will be cut off so there is no need to worry about over-discharge. *1
Equipped with numerous slits for heat dissipation, it effectively dissipates heat. Stable operation is achieved.
The LED lights up/blinks according to the discharge status, making the battery status clear at a glance.
Compact size for easy carrying.
*1. This function prevents over-discharge. Do not store the battery while it is connected.
Product Specifications
Compatible battery LiPo/LiHV 1-2S only
Connector type JST-XH
Discharge current Maximum 1A/8.7W (automatically variable depending on the situation)
Cut voltage 3.85V/S (±50mV)
Size 60×40×25 (mm)
Weight 34g
