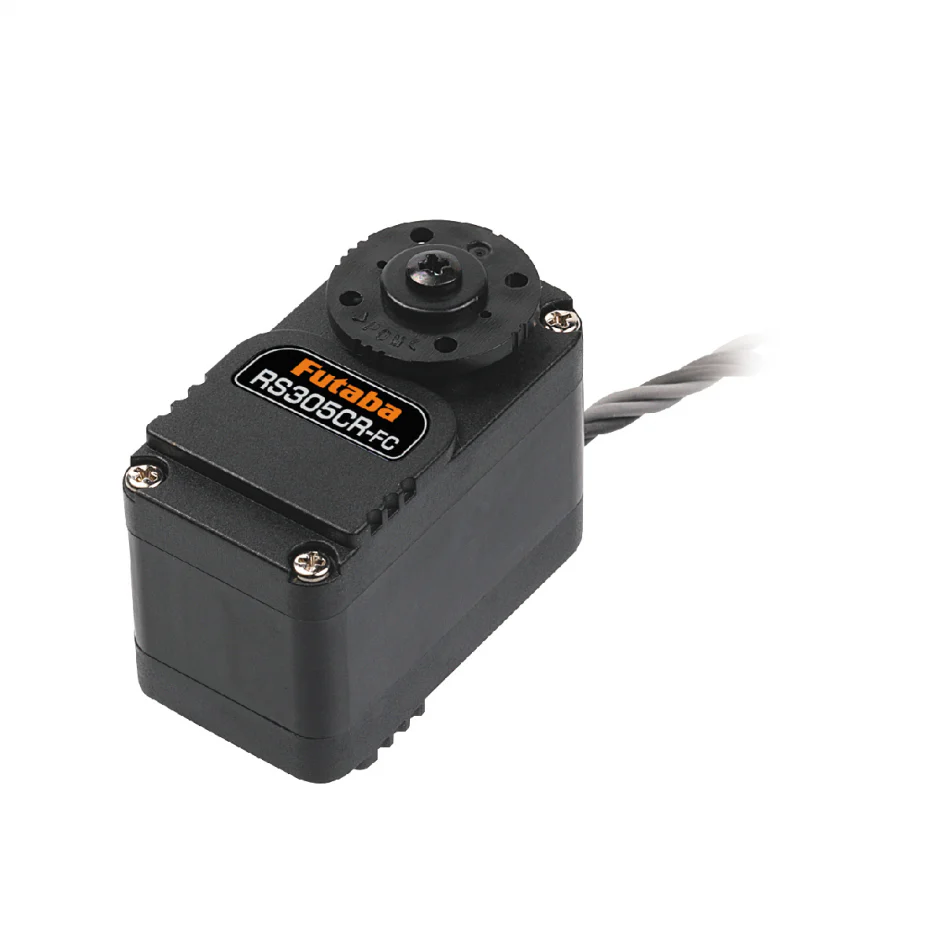

Futaba 400113-3 RS305CR Coreless motor & metal gear, compact and lightweight servo

Futaba 400113-3 RS305CR Coreless motor & metal gear, compact and lightweight servo

Among the RS30xx series developed for small bipedal robots, the RS305CR is the combination of a coreless motor and metal gears that achieves high torque and high speed. When attached to the robot, Hirose Electric's DF11 connector is used to reduce the space through the connector at the joint.

・Torque: 7.1 [kgf・cm]
・Speed: 0.11 [sec/60°]
・Weight: 28 [g]
・Dimensions: 35.8×19.5×25.0mm
・Supply voltage: 7.4 [V]
・Range of motion: 300 [deg]
・Communication format: RS485 half-duplex

Please refer to the instruction manual for dimensions and mounting hole positions.

$11,033.00
Futaba 400113-3 RS305CR Coreless motor & metal gear, compact and lightweight servo—
$11,033.00

More Images

Futaba 400113-3 RS305CR Coreless motor & metal gear, compact and lightweight servo - Image 2

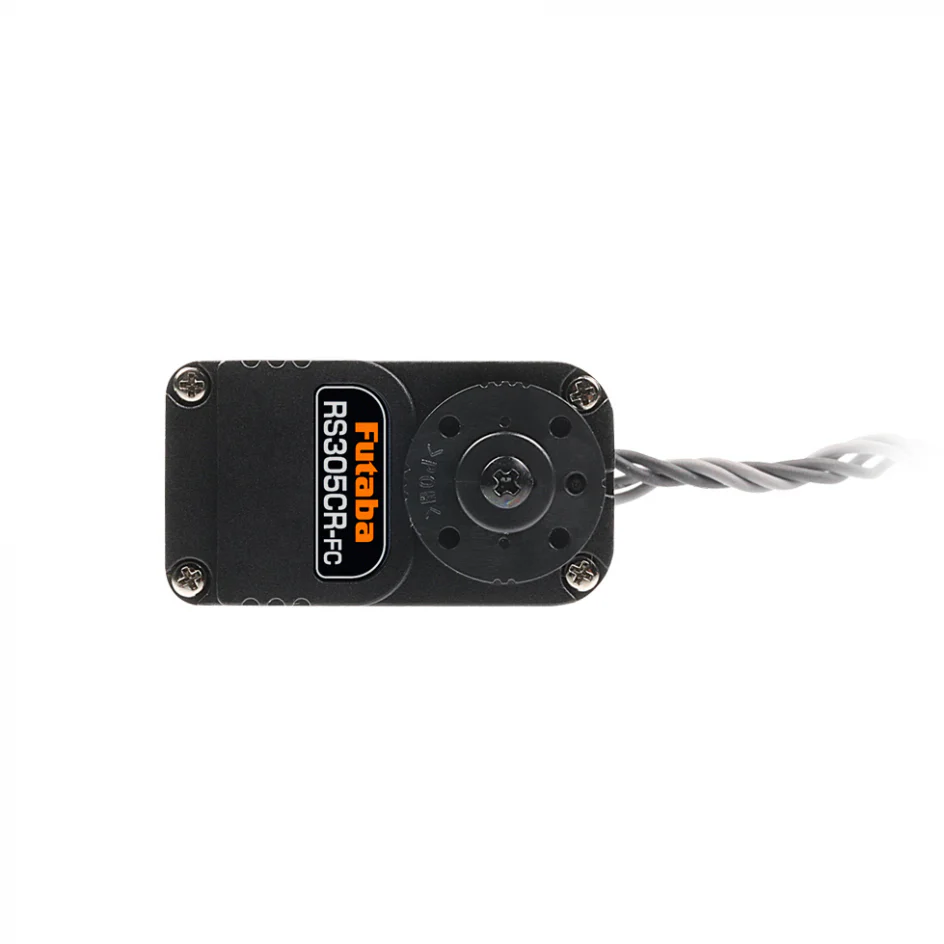

Futaba 400113-3 RS305CR Coreless motor & metal gear, compact and lightweight servo - Image 3
Futaba 400113-3 RS305CR Coreless motor & metal gear, compact and lightweight servo - Image 4

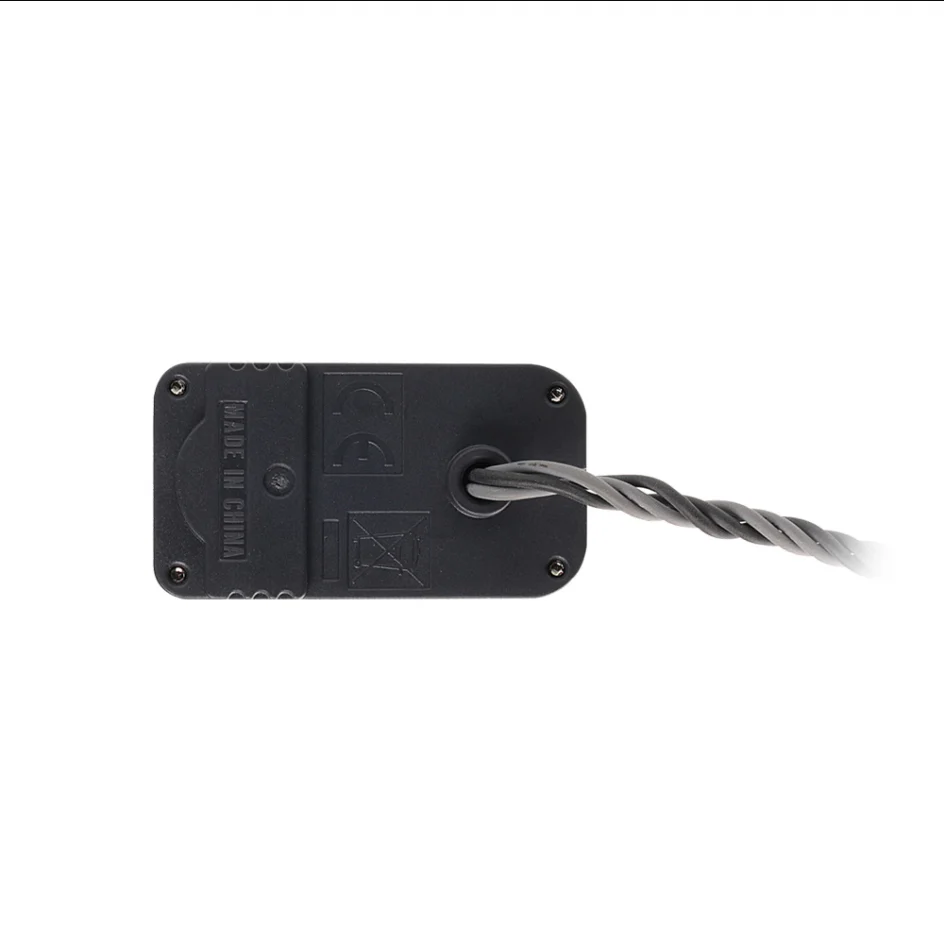

Futaba 400113-3 RS305CR Coreless motor & metal gear, compact and lightweight servo - Image 5
