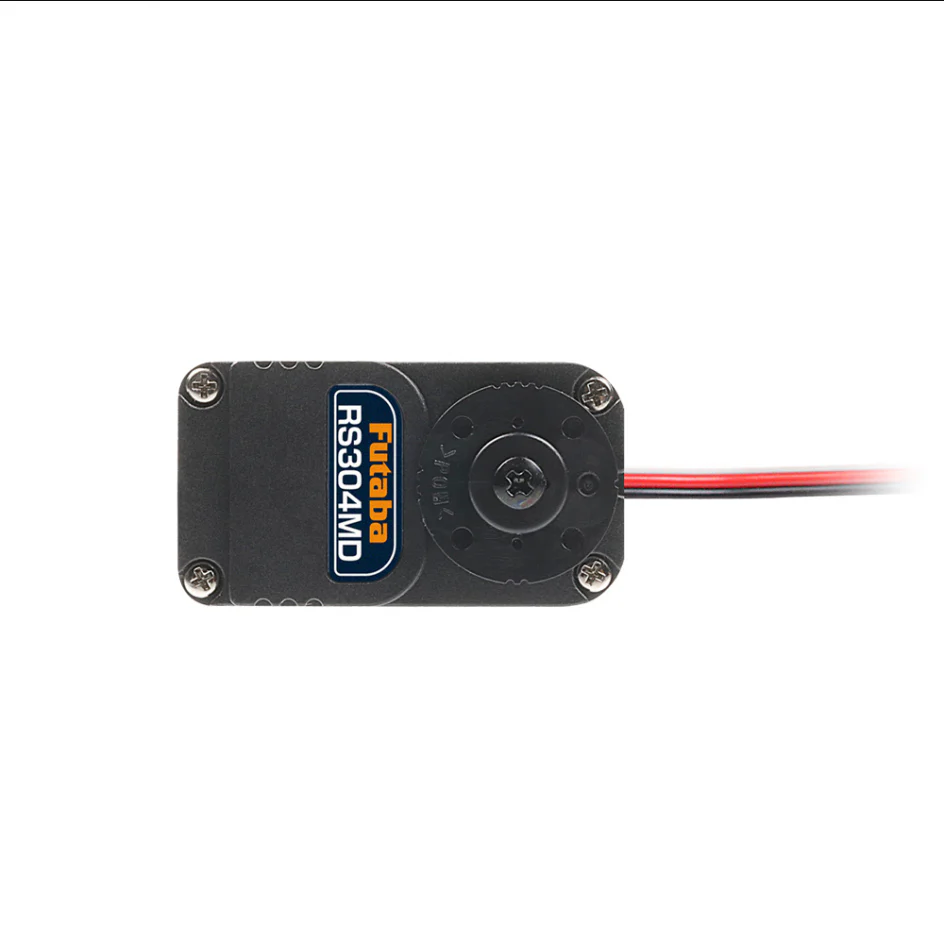

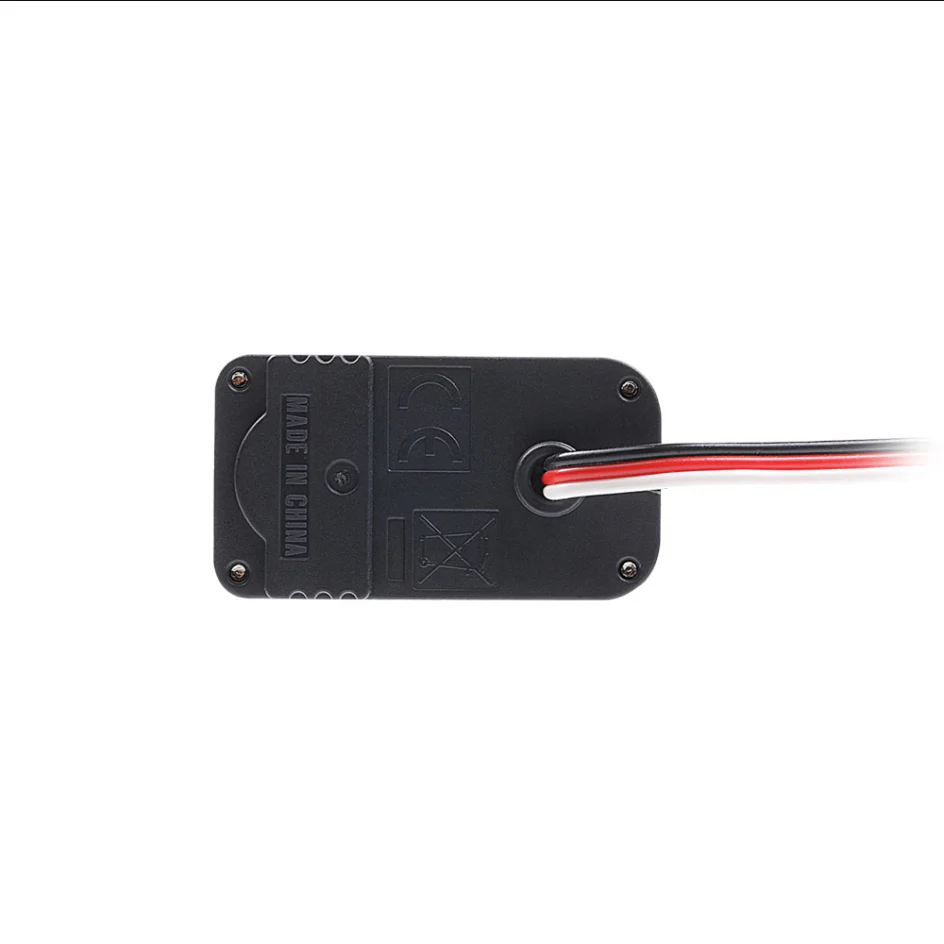

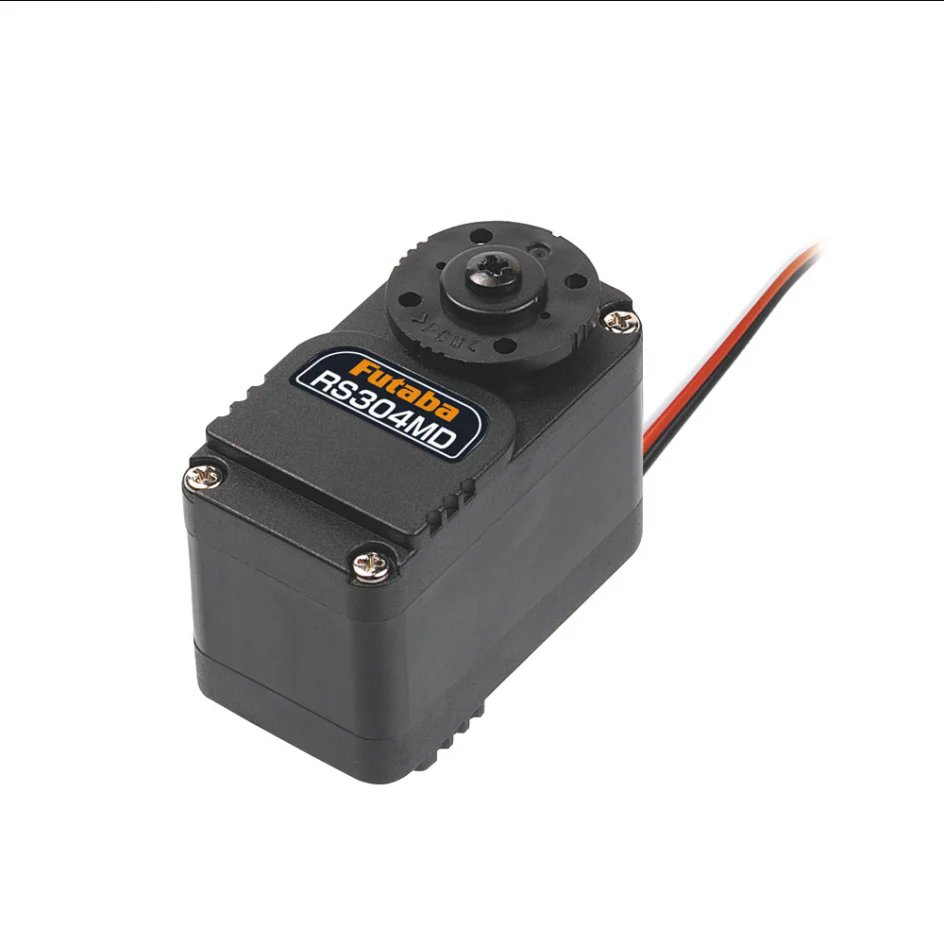

Futaba 400110-3 RS304MD Resin gear, compact and lightweight servo
Based on RS302CD, the RS304MD is compatible with TTL command method / PWM method. The connector is the same as the RS303MR, and uses a connector for R/C servo. It is a RS304MD that is popular as an inexpensive radio-controlled servo, but it has sufficient ability, such as being used in a humanoid bipedal robot of about 30 cm.
・Torque: 5.0 [kgf・cm]
・Speed: 0.16 [s/60°]
・Weight: 21 [g]
・Dimensions: 35.8×19.5×25.0mm
・Power supply: 4.8~7.4 [V]
・Range of motion: 300 [deg]
・Communication format: Please refer to the instruction manual for TTL half-duplex communication/PWM system
dimensions and mounting hole positions.
・Speed: 0.16 [s/60°]
・Weight: 21 [g]
・Dimensions: 35.8×19.5×25.0mm
・Power supply: 4.8~7.4 [V]
・Range of motion: 300 [deg]
・Communication format: Please refer to the instruction manual for TTL half-duplex communication/PWM system
dimensions and mounting hole positions.
$4,675.00
