Futaba 107423-3 S-A601 S.BUS Digital Servo for Large Airplanes (S9177SV Replacement)
HomeStore

Futaba 107423-3 S-A601 S.BUS Digital Servo for Large Airplanes (S9177SV Replacement)

Futaba 107423-3 S-A601 S.BUS Digital Servo for Large Airplanes (S9177SV Replacement)

This is a digital servo that uses the S.BUS method for large aircraft.

・Digital servos for large airplanes

・Metal 2-3 stage gear
, metal terminal gear,
S.BUS system
, aluminum middle case

・Coreless motor

speed: 0.11sec/60° (7.4V) / 0.12sec/60° (6.6V)
・Torque: 41.0kgf・cm (7.4V) / 36.8kgf・cm (6.6V)

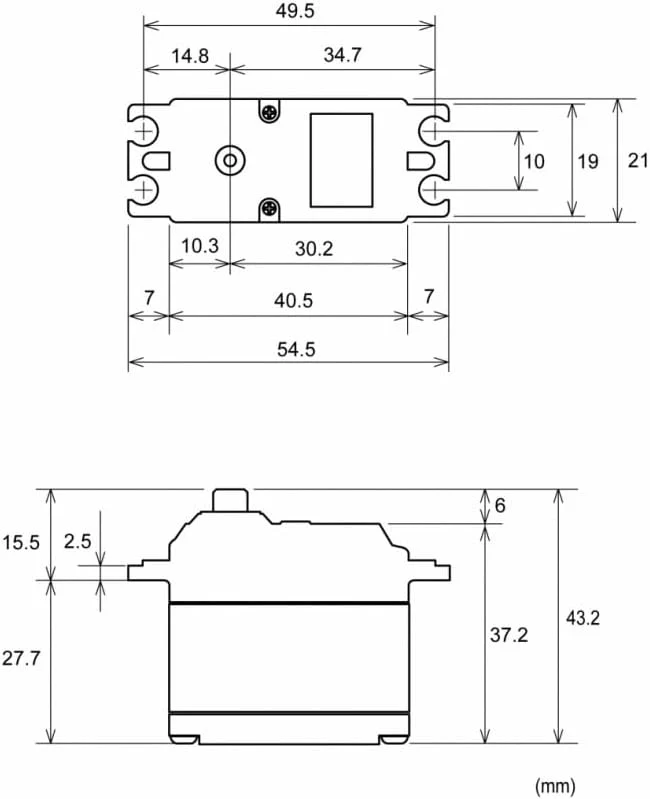

・Dimensions/Weight: 40.5×21.0×37.2mm / 74g

[Replacement parts list]

Gear Set : 308185

Case Set : 308192

Horn : Φ6

Horn Mounting Screws: 306235

Rubber Bush : 300837

Servo fixing screws: 300752

Eyelet : 300769

$17,298.00
Futaba 107423-3 S-A601 S.BUS Digital Servo for Large Airplanes (S9177SV Replacement)—
$17,298.00

More Images

Futaba 107423-3 S-A601 S.BUS Digital Servo for Large Airplanes (S9177SV Replacement) - Image 2
Futaba 107423-3 S-A601 S.BUS Digital Servo for Large Airplanes (S9177SV Replacement) - Image 3

Futaba 107423-3 S-A601 S.BUS Digital Servo for Large Airplanes (S9177SV Replacement)

This is a digital servo that uses the S.BUS method for large aircraft.

・Digital servos for large airplanes

・Metal 2-3 stage gear
, metal terminal gear,
S.BUS system
, aluminum middle case

・Coreless motor

speed: 0.11sec/60° (7.4V) / 0.12sec/60° (6.6V)
・Torque: 41.0kgf・cm (7.4V) / 36.8kgf・cm (6.6V)
・Dimensions/Weight: 40.5×21.0×37.2mm / 74g

[Replacement parts list]

Gear Set : 308185

Case Set : 308192

Horn : Φ6

Horn Mounting Screws: 306235

Rubber Bush : 300837

Servo fixing screws: 300752

Eyelet : 300769

Product Information

Shipping & Returns

Description

This is a digital servo that uses the S.BUS method for large aircraft.

・Digital servos for large airplanes

・Metal 2-3 stage gear
, metal terminal gear,
S.BUS system
, aluminum middle case

・Coreless motor

speed: 0.11sec/60° (7.4V) / 0.12sec/60° (6.6V)
・Torque: 41.0kgf・cm (7.4V) / 36.8kgf・cm (6.6V)
・Dimensions/Weight: 40.5×21.0×37.2mm / 74g

[Replacement parts list]

Gear Set : 308185

Case Set : 308192

Horn : Φ6

Horn Mounting Screws: 306235

Rubber Bush : 300837

Servo fixing screws: 300752

Eyelet : 300769
