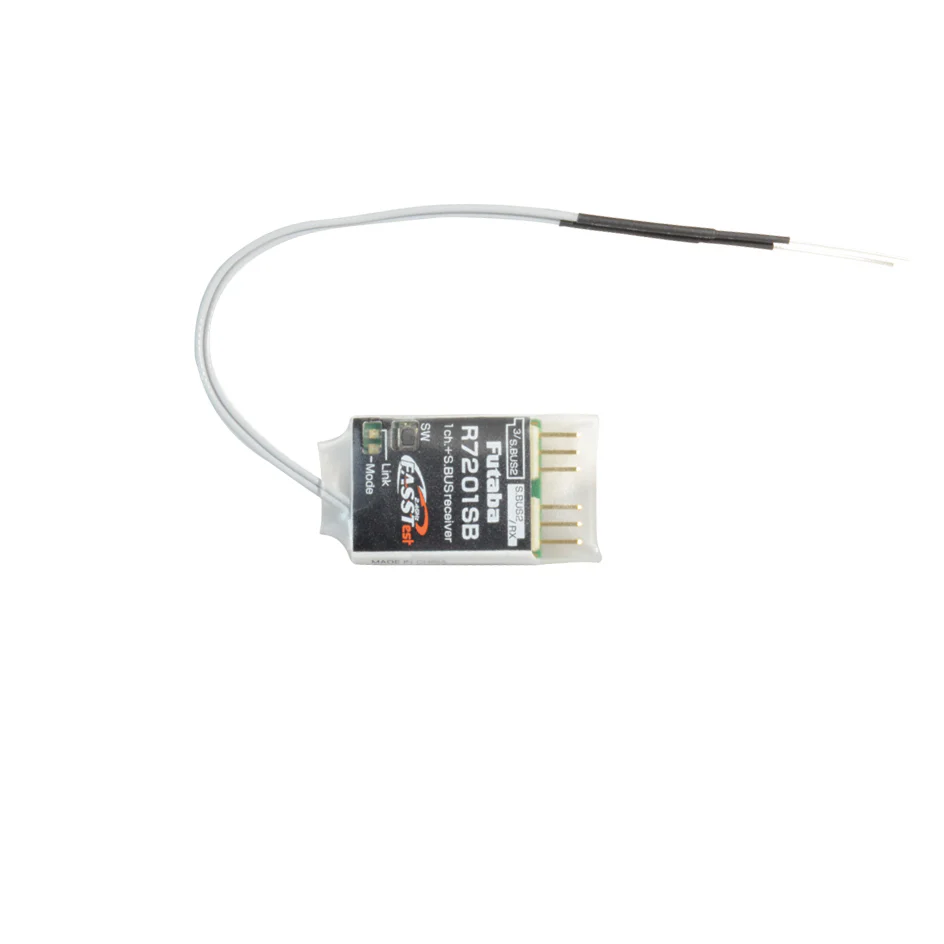

Futaba 107405-3 R7201SB

Equipped with a FASSTest dual Rx link system for emptying. It is usually a 1ch antenna receiver.

When using CGY755, GYA553, DLPH-2, etc.,

It is a recommended receiver for aircraft that only need a reception function with an S.BUS connection.

It is also a small receiver, so it uses a dual Rx link system

It can also be used as a sub-receiver.



- FASSTest 2.4GHz (26ch/18ch/12ch mode)
- S.BUS2 input/output / S.BUS output + conventional system output (ch1)

・Equipped with dual Rx link system

・Antenna: Diversity method
, Dimensions: 21.5×39.5×6.5mm
, Weight: 4.9g
, Power supply: 3.7~7.4V (Batteries cannot be used)

・Usable voltage range: 3.5~8.4V
・Battery F/S voltage: Set from transmitter

・Standard connector
