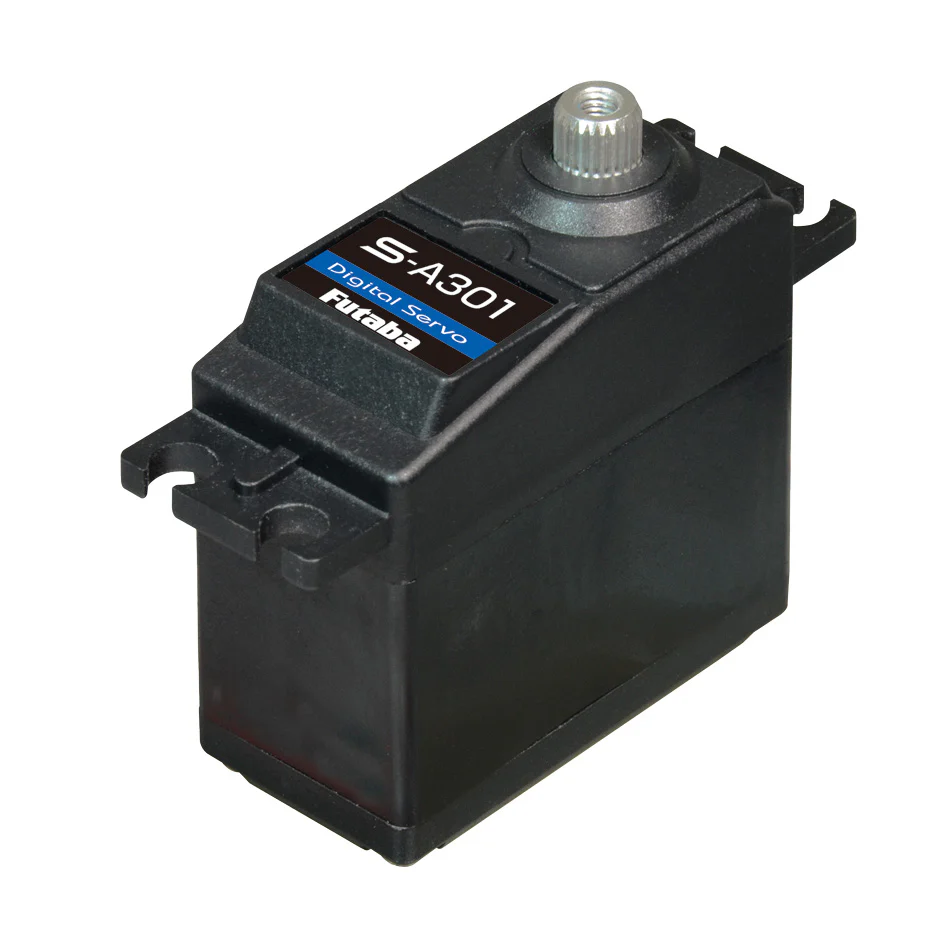

Futaba 107394-3 S-A301 SERVO High-Speed Digital Standard Servo for Airplanes
This is a high-speed digital standard servo that uses the S.BUS system for airplanes.
・High-speed digital standard servo
for airplane・Metal 2-3 stage gear
・Aluminum endstage gear
・S.BUS system
・Speed: 0.13sec/60°(7.4V) / 0.14sec/60°( 6.6V)
・Torque: 9.0kgf・cm (7.4V) / 8.5kgf・cm (6.6V)

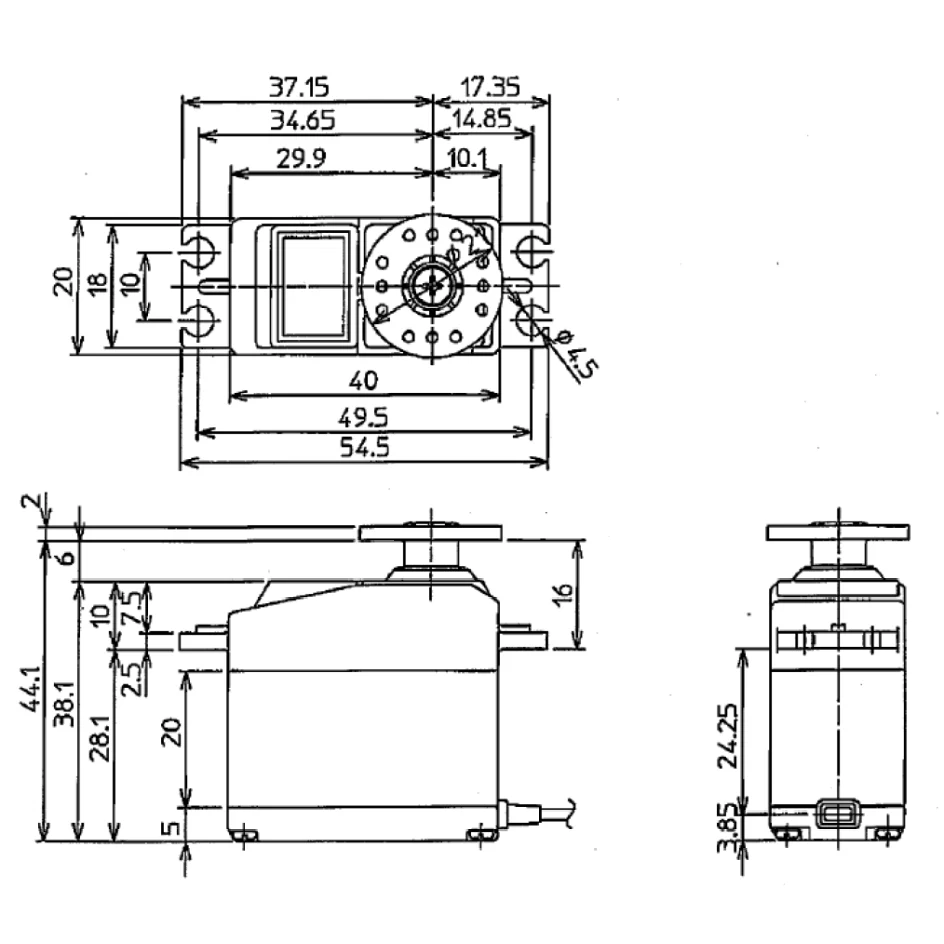

・Dimensions/Weight: 40×20×38.1mm / 47g
* When used on large-scale aircraft, acro aircraft, and large-rudder aircraft, overload, Vibration may cause the servo to fail.
* For aircraft with an aircraft weight of 4000g or more or an engine displacement of 25cc or more, use an S-A501 or a servo of 16kgf・cm (7.4V) or more.
* The S-A301 is an airplane servo. Do not use on helicopters.
More Images
Futaba 107394-3 S-A301 SERVO High-Speed Digital Standard Servo for Airplanes
This is a high-speed digital standard servo that uses the S.BUS system for airplanes.
・High-speed digital standard servo
for airplane・Metal 2-3 stage gear
・Aluminum endstage gear
・S.BUS system
・Speed: 0.13sec/60°(7.4V) / 0.14sec/60°( 6.6V)
・Torque: 9.0kgf・cm (7.4V) / 8.5kgf・cm (6.6V)
・Dimensions/Weight: 40×20×38.1mm / 47g
* When used on large-scale aircraft, acro aircraft, and large-rudder aircraft, overload, Vibration may cause the servo to fail.
* For aircraft with an aircraft weight of 4000g or more or an engine displacement of 25cc or more, use an S-A501 or a servo of 16kgf・cm (7.4V) or more.
* The S-A301 is an airplane servo. Do not use on helicopters.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This is a high-speed digital standard servo that uses the S.BUS system for airplanes.
・High-speed digital standard servo
for airplane・Metal 2-3 stage gear
・Aluminum endstage gear
・S.BUS system
・Speed: 0.13sec/60°(7.4V) / 0.14sec/60°( 6.6V)
・Torque: 9.0kgf・cm (7.4V) / 8.5kgf・cm (6.6V)
・Dimensions/Weight: 40×20×38.1mm / 47g
* When used on large-scale aircraft, acro aircraft, and large-rudder aircraft, overload, Vibration may cause the servo to fail.
* For aircraft with an aircraft weight of 4000g or more or an engine displacement of 25cc or more, use an S-A501 or a servo of 16kgf・cm (7.4V) or more.
* The S-A301 is an airplane servo. Do not use on helicopters.
