Futaba 107374-3 HPS-AA702 Aerospace HPS Servo Series
This is a servo for large airplanes of the HPBLS series that achieves amazing torque and low power consumption.
The HPS series not only ensures surprising neutral accuracy and reliable torque, but also
Dispelling the relationship between speed power and power consumption, which has been considered to be a dichotomy until now,
Reliable power is achieved with low power consumption.
The new HPS motor and high-frequency control have improved response. ・For large airplanes (aileron recommended)
・Metal 1-3 stage
gears, high-strength metal end-stage gears
, upper/middle/lower aluminum case
, S.BUS system
- New control board
・High frequency control
・Speed: 0.075sec/60° (7.4V) / 0.08sec/60° (6.6V)
・Torque: 41kgf・cm (7.4V) / 37kgf・cm (6.6V)

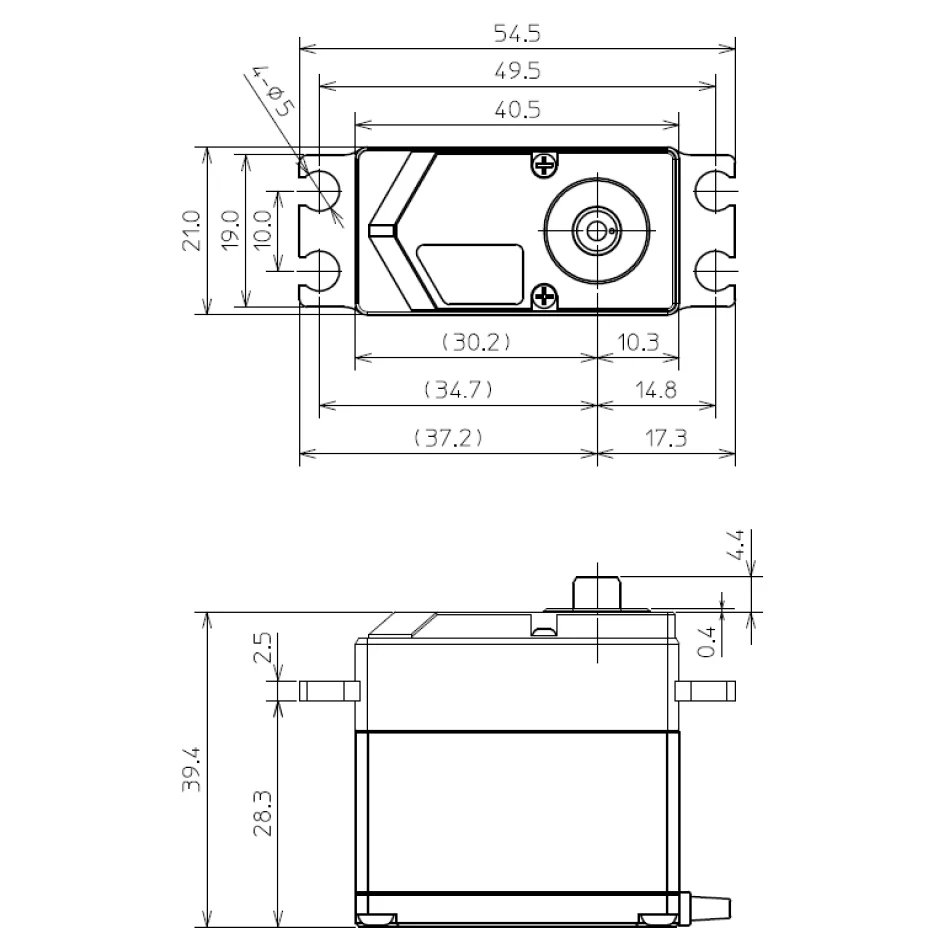

・Dimensions/Weight: 40.5×21.0×39.4mm / 80g
* The HPS-AA702 requires a large current instantaneously in order to achieve both high output and responsiveness. In the case of intense acro flights, the power supply line may become unstable in rare cases, so when connecting one or more servos in the S.BUS system, please use a receiver capacitor (16V1800μF) for safety. Please refer to the instruction manual for connection.
* Batteries and BEC cannot be used.
[Replacement parts list]
Case Set : 308895
Horn : Φ6
Horn Mounting Screws: 306235
Rubber Bush : 302787
Servo fixing screws: 300752
Eyelet : 302770
