Futaba 107339-3 HPS-HC701 F3C Swash

High-performance brushless design with threatening torque and low power consumption. ★The HPS-HC701 is a low-pro servo that supports UR mode.

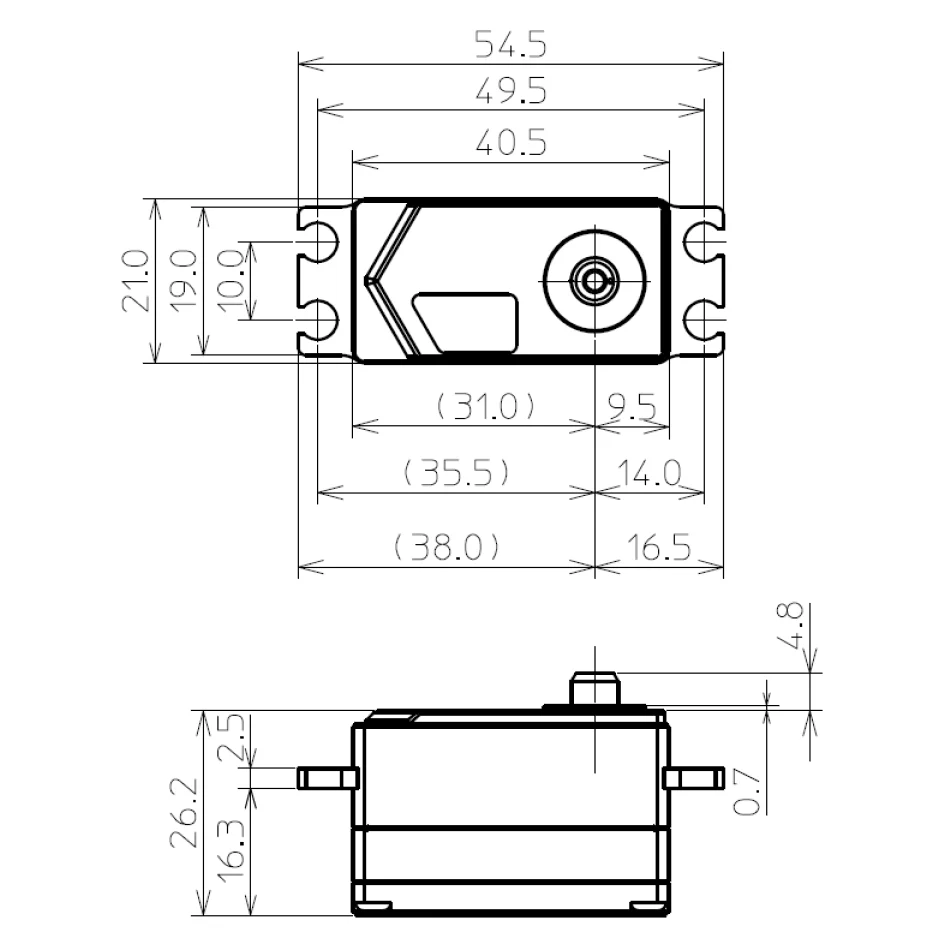

Dimensions: 40.5 × 21.0 × 26.2 mm

Weight: 56 g

- speed: 0.07 sec / 60 ° (7.4 V)

　　　　　　0.08 sec / 60°（6.6 V）

[Torque] 30.0 kgf・cm (7.4 V)

26.5 kgf·cm (6.6 V)



●760 μs (changeable to 1520μs)

●S.BUS system

●HPS motor



- Metal 1-3 stage gear

● High-strength metal terminal gear

- Aluminum case



Torque is 27.0 kgf·cm (7.4V) and 24.0kgf·cm (6.6V) at 760 μs



By combining it with CGY770R, you can experience "UR mode" with greatly improved response.
