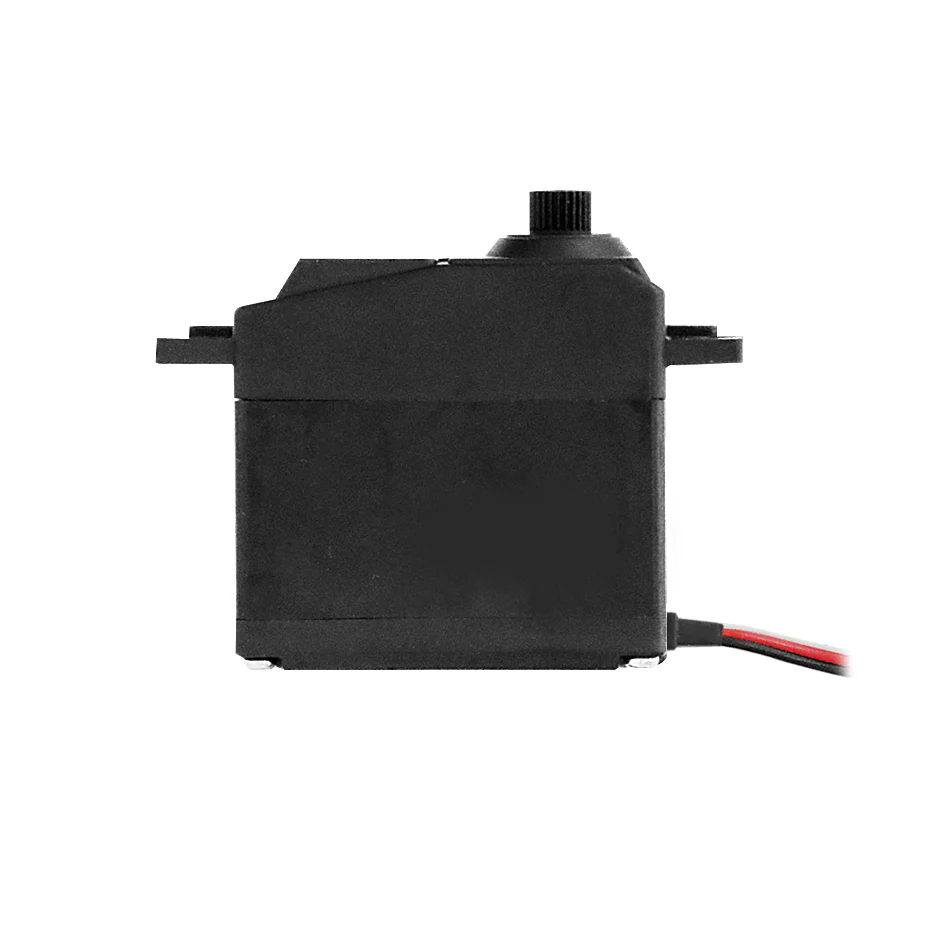

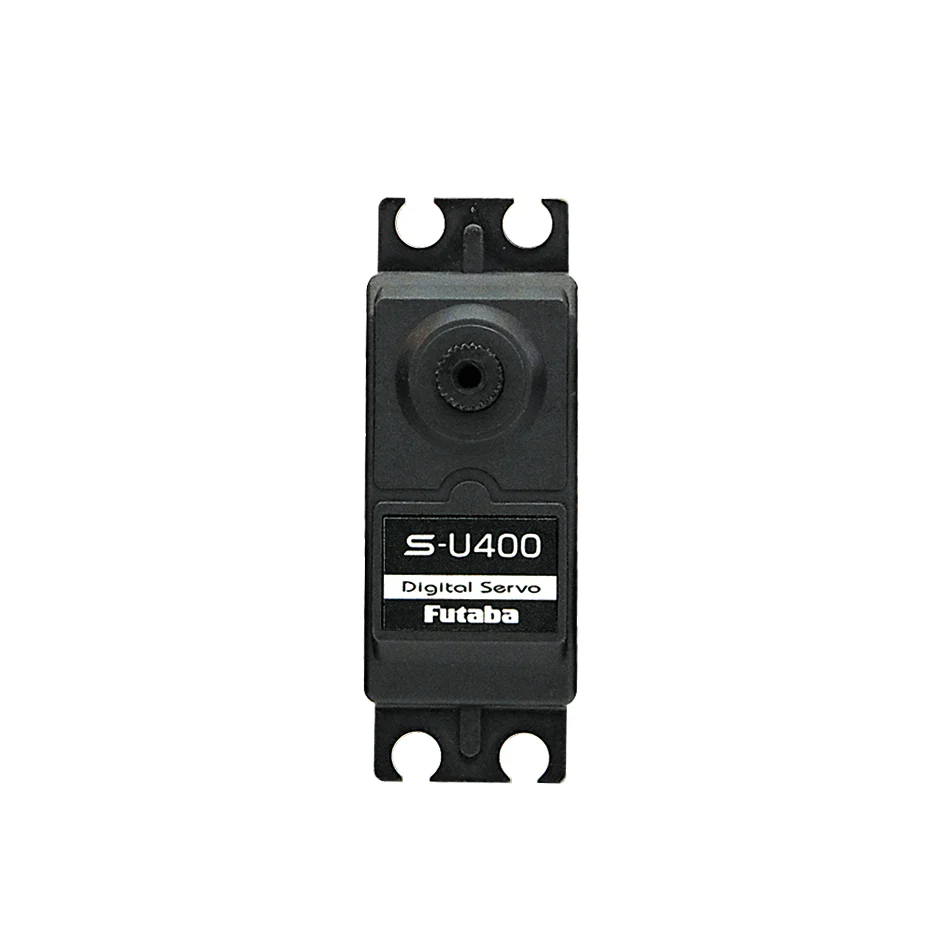

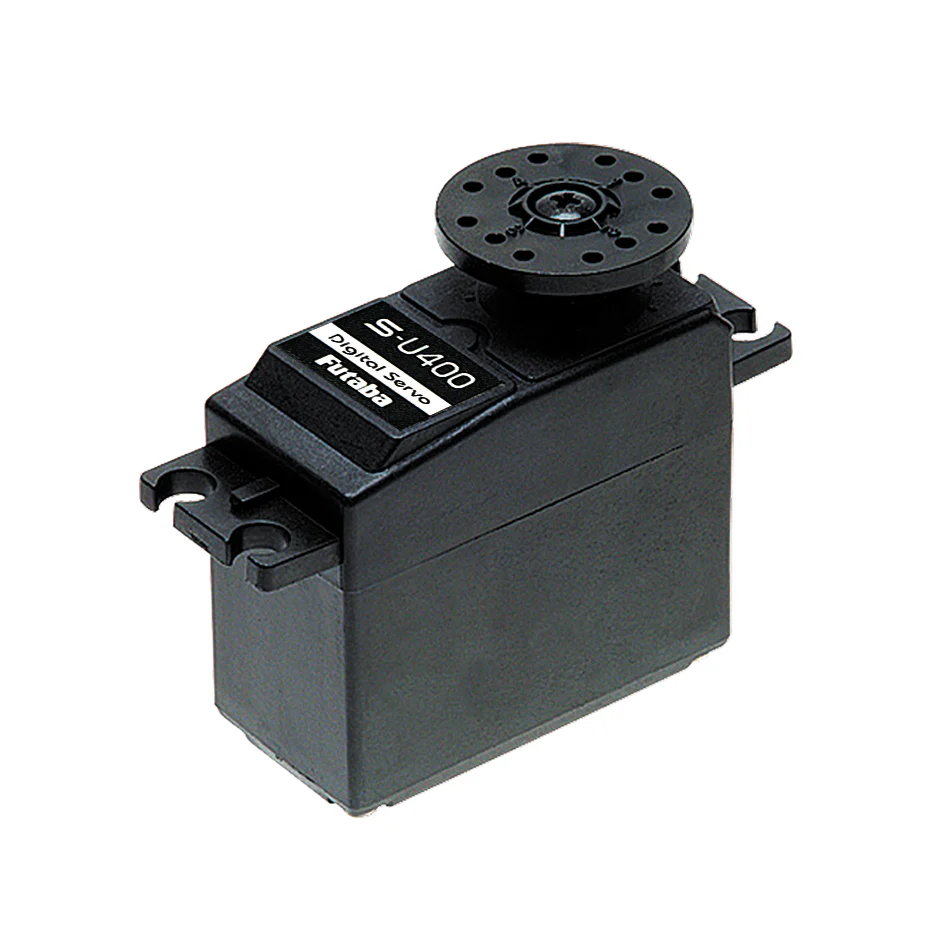

Futaba 107235-3 S-U400 High Voltage Standard S.BUS Servo
This is a high-voltage servo that uses the S.BUS system for airplanes, helicopters, and cars.
・High Voltage Servo
for Airplanes, Helicopters, Cars, All Resin
Gears, S.BUS System
, Speed: 0.13sec/60°(7.4V) / 0.14sec/60°(6.6V)
・Torque: 7.9kgf・cm(7.4V) / 7.1kgf・cm(6.6V)

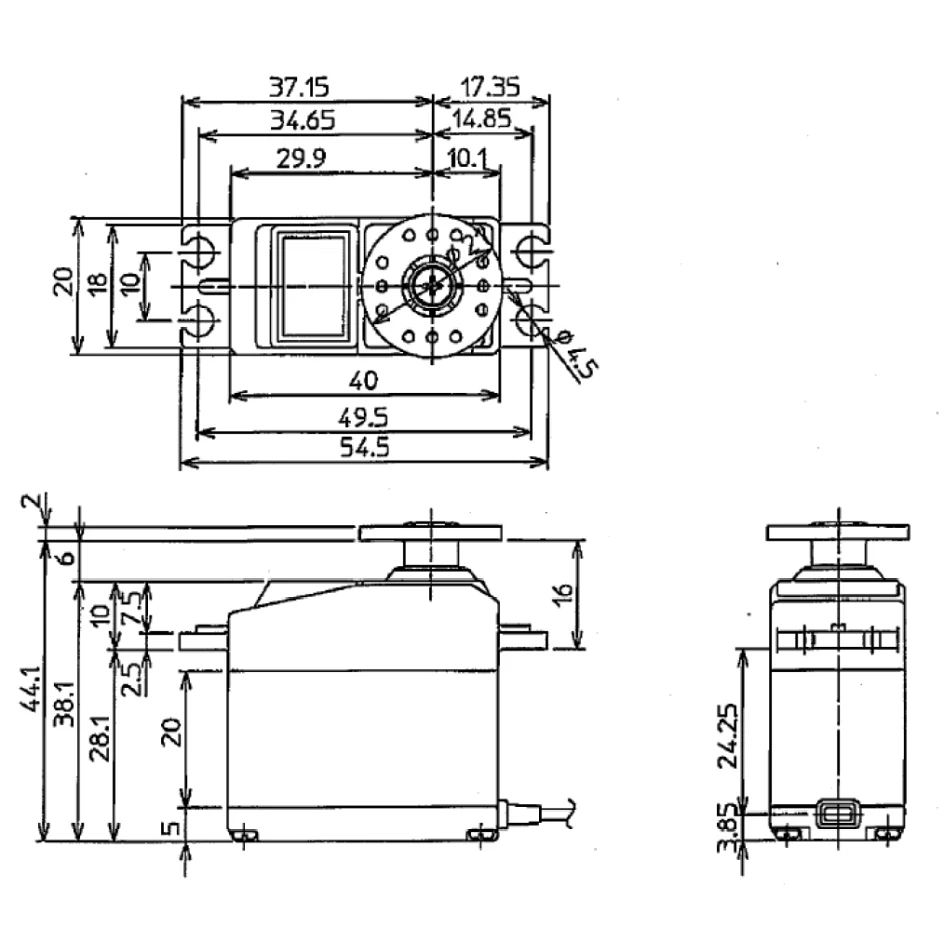

・Dimensions/Weight: 40.0×20.0×38.1mm / 39g
[Replacement parts list]
Gear Set : 303050
Case Set : 303043
Horn : Φ6
Horn Mounting Screws: 300783
Rubber Bush : 300837
Servo fixing screws: 300752
Eyelet : 300769
More Images
Futaba 107235-3 S-U400 High Voltage Standard S.BUS Servo
This is a high-voltage servo that uses the S.BUS system for airplanes, helicopters, and cars.
・High Voltage Servo
for Airplanes, Helicopters, Cars, All Resin
Gears, S.BUS System
, Speed: 0.13sec/60°(7.4V) / 0.14sec/60°(6.6V)
・Torque: 7.9kgf・cm(7.4V) / 7.1kgf・cm(6.6V)
・Dimensions/Weight: 40.0×20.0×38.1mm / 39g
[Replacement parts list]
Gear Set : 303050
Case Set : 303043
Horn : Φ6
Horn Mounting Screws: 300783
Rubber Bush : 300837
Servo fixing screws: 300752
Eyelet : 300769
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This is a high-voltage servo that uses the S.BUS system for airplanes, helicopters, and cars.
・High Voltage Servo
for Airplanes, Helicopters, Cars, All Resin
Gears, S.BUS System
, Speed: 0.13sec/60°(7.4V) / 0.14sec/60°(6.6V)
・Torque: 7.9kgf・cm(7.4V) / 7.1kgf・cm(6.6V)
・Dimensions/Weight: 40.0×20.0×38.1mm / 39g
[Replacement parts list]
Gear Set : 303050
Case Set : 303043
Horn : Φ6
Horn Mounting Screws: 300783
Rubber Bush : 300837
Servo fixing screws: 300752
Eyelet : 300769
