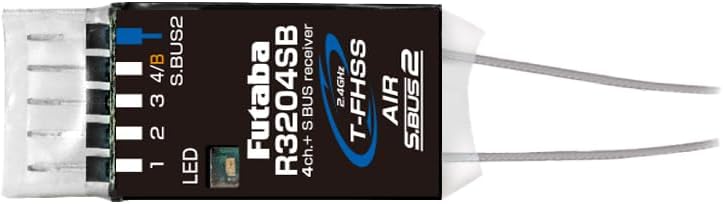

Futaba 00107400-3 R3204SB Receiver Empty T-FHSS AIR System

This is a 4-channel compact receiver with T-FHSS AIR system for air use.

・S.BUS2 input/output + conventional system output (ch1-4)

・Dimensions: 18.0×41.4×9.9mm
・Weight: 4.8g
・Frequency: 2.4GHz-T-FHSS AIR
・Rated voltage: 3.7~7.4V (Batteries cannot be used)

Usable voltage range: 3.5~8.5V

・Standard connector

- Equipped with model ID function



* For 1 cell (3.8V or less), turn off the battery F/S.

Checking the receiver voltage is a telemetry

Please use the receiver voltage alarm setting function.

For details on how to set the settings, refer to the instruction manual of each transmitter.
