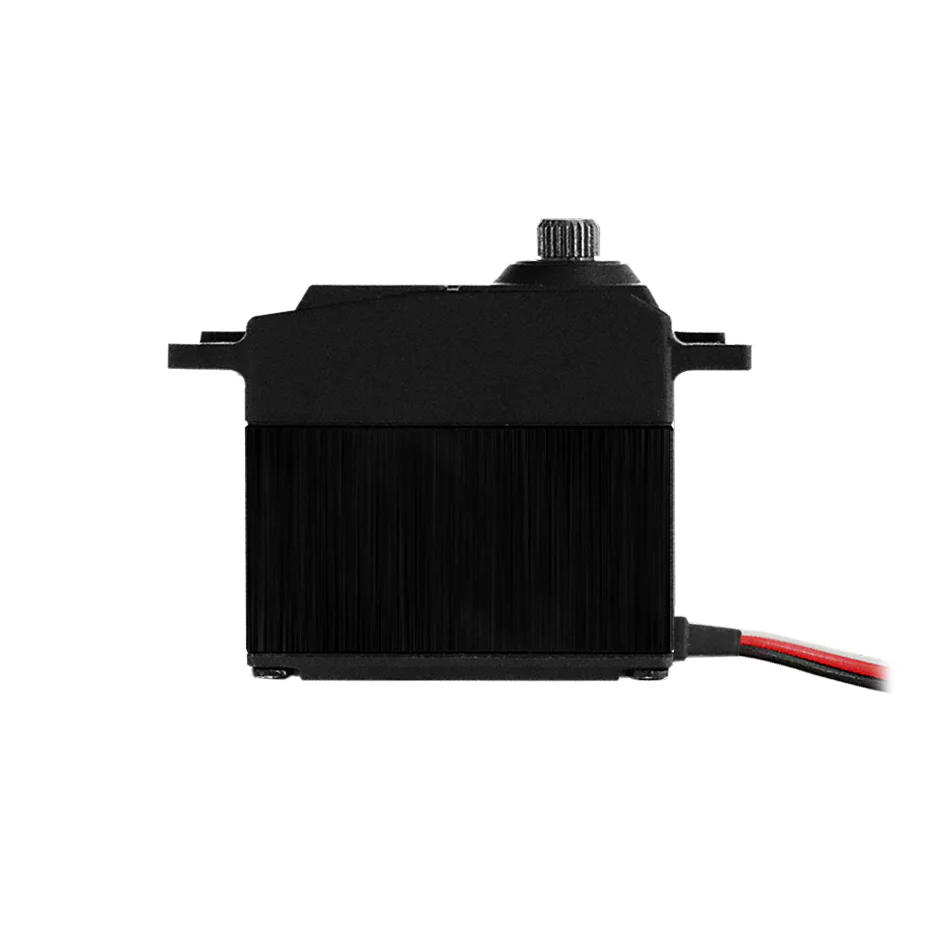

Futaba 107376-3 S-A501 Digital Servo, S.BUS System

This is a high-voltage servo that uses the S.BUS system for 30cc class airplanes.

・30cc class airplane high-voltage servo
, metal 2-3 gear,
aluminum terminal gear/bearing included
, S.BUS system
, aluminum middle case

・Coreless motor

・Speed: 0.11sec/60°(7.4V) / 0.12sec/60°(6.6V)・
Torque: 16.8kgf・cm(7.4V) / 15.0kgf・cm(6.6V)

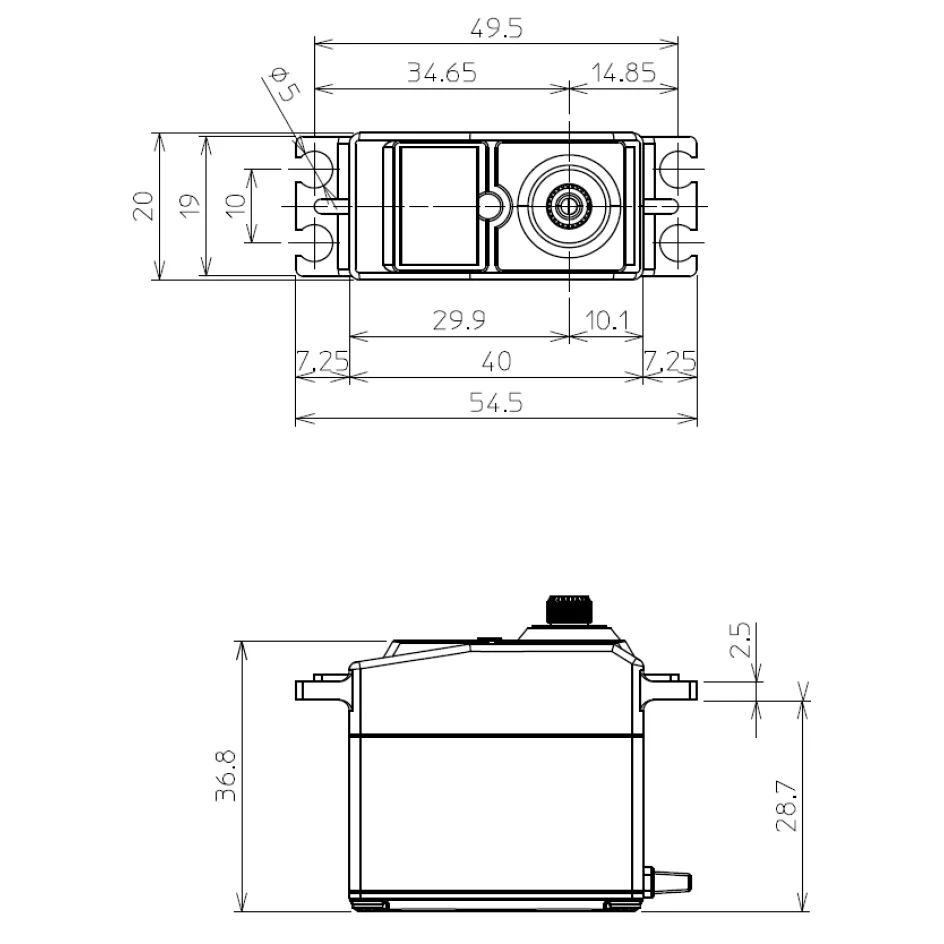

・Dimensions/Weight: 40.0×20.0×36.8mm / 61g

* Power supply: 6.0-7.4V

[Replacement parts list]

Gear Set : 308222

Case Set : 304613

Horn : Φ6

Horn Mounting Screws: 306235

Rubber Bush : 302787

Eyelet : 302770
